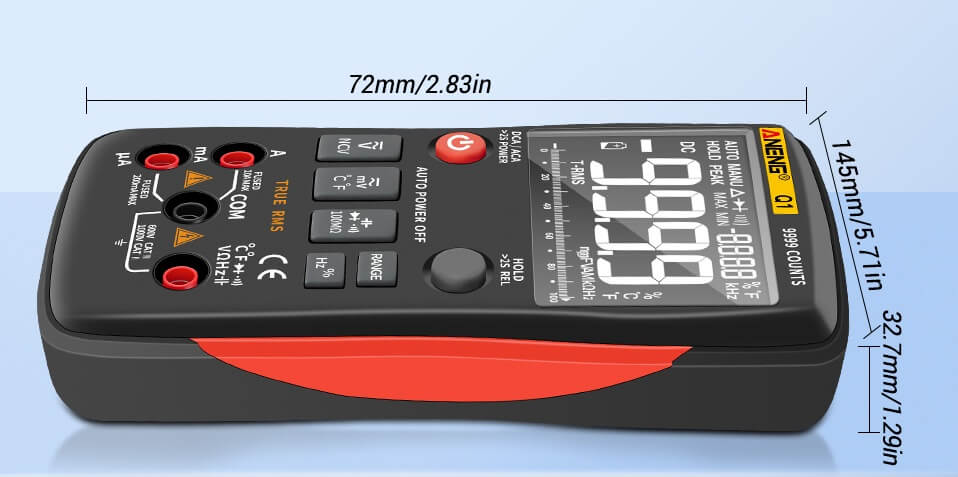

Digital Multimeter - Auto Ranging - Measure Voltage you are being exposed to in the home or outside.

Digital Multimeter - Auto Ranging - Measure Voltage you are being exposed to in the home or outside.

Regular price $94.99 NZD
Regular price Sale price $94.99 NZD
Sale Sold out
Tax included.
Great easy to use Multimeter.
Can measure the variable voltage your body is being exposed to inside the home and out.

Requires 2 X AA Batteries ( Included)

* Auto and Manual ranging modes
* Safety Rate: CAT IV 600V CAT III 1000V
* Max Current range: 20A
* Temperature test
* Backlight, Auto power off, Max/MIN etc.

Set up for measuring varible voltage:

1. Insert leads. Black to COM(Black) - Red to VHz (Red)
2. Insert two AA batteries
3. Click from OFF up one to Variable voltage (V with squiggly line above)
4. Insert Black prong into Earth pin of plug or directly into earth outside.
5. Hold red prong to see voltage you are being subject to.
6. Try going near or touching different object around the home, like the walls where your power wires are - pretty scary to see the voltage that is always present.

Specifications:

Brand Name

ANENG

Model Number

Q1

Display (LCD)

9999 Counts

Ranging

Auto/Manual

Material

ABS+TPE

Update Rate

3 Times/Second

Ture RMS

YES

Data Hold

YES

Relative Value Measurement

YES

Low Battery Indication

YES

Backlight

YES

Auto Power Off

YES

Operating

Temperature

0~40°C





Humidity

75%



Storage

Temperature

-20~60°C





Humidity

80%


Function

Range

Accuracy

DC voltage (V)

999.9mV/9.999V/99.99V/999.9V

±(0.5%+3)

DC voltage (mV)

9.999mV /99.99mV

±(0.5%+3)

AC voltage (V)

999.9mV/9.999V/99.99V/750.0V

±(1.0%+3)

AC voltage (mV)

9.999mV /99.99mV

±(1.0%+3)

DC Current (mA&A)

999.9mA/9.999A

±(1.0%+3)

DC Current (uA)

9999uA

±(0.8%+3)

AC Current (mA&A)

999.9mA/9.999A

±(1.0%+3)

AC Current(uA)

9999uA

±(1.0%+3)

Resistance

99.99

±(1.0%+3)

Resistance

999.9 /9.999k /99.99k /999.9k /

±(0.5%+3)

Resistance

9.999M

±(1.5%+3)

Resistance

99.99M

±(3.0%+5)

Capacitor

9.999nF

±(5.0%+20)

Capacitor

99.99nF /999.9nF /9.999F /99.99F /999.9F

±(2.0%+5)

Capacitor

9.999mF

±(5.0%+5)

Frequency

99.99Hz /999.9Hz /9.999kHz /99.99kHz /999.9kHz /2.000MHz

±(0.1%+2)

Duty cycle

1%~99%

±(0.1%+2)

Diode   :YES

Continuity   :YES

NCV  :YES

Temperature

(-20~1000)° /(-4~1832)°

±(2.5%+5)

Power

2 * 1.5V AA batteries

(Not Included)

Sample Rate

3 times per second
